GARMIN 300 in CX162A SkyCatcher

Postby AADX »

Courtesy of Peter Slodowy [Kumpel]

Peter has done a tremendous job developing a custom, as close as possible, Garmin 300 solution for the Cessna 162A Skycatcher with use of generic instruments, grouping and logic. My hat is entirely off to Mister Slodowy for his attention to detail and patience to make these things. In the Skycatcher, this G300 system is BOTH PFD & MFD and I really think fans of this aircraft, or interested in this type of compact glass & LSA are in for a real treat. Be sure to send Peter a note saying a big howdy and thank you.

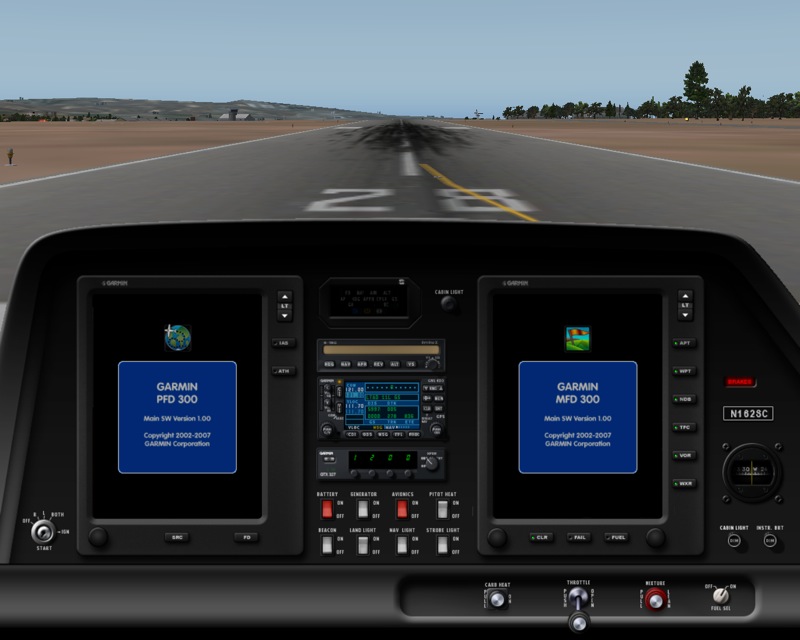

Initial Power ON (ACF load)

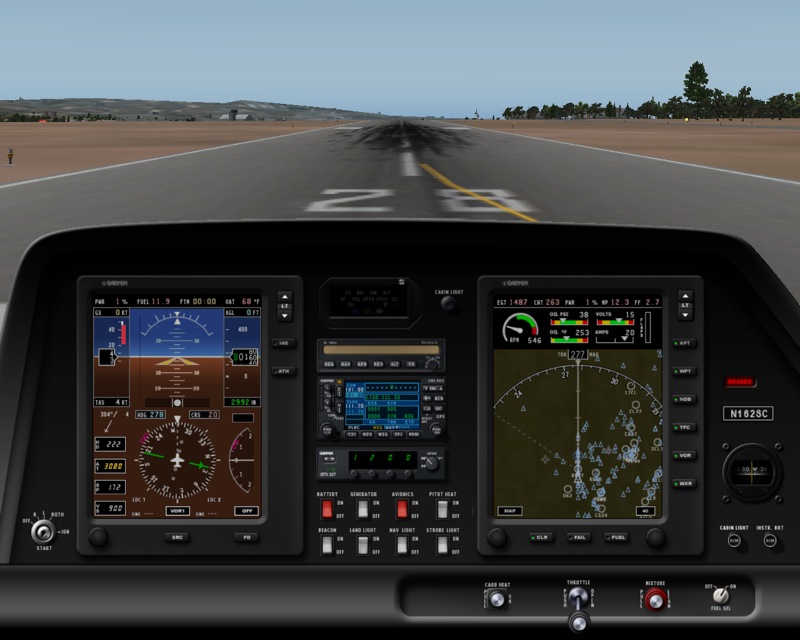

Initial display page(s) PFD & MFD

MFD Failures Page

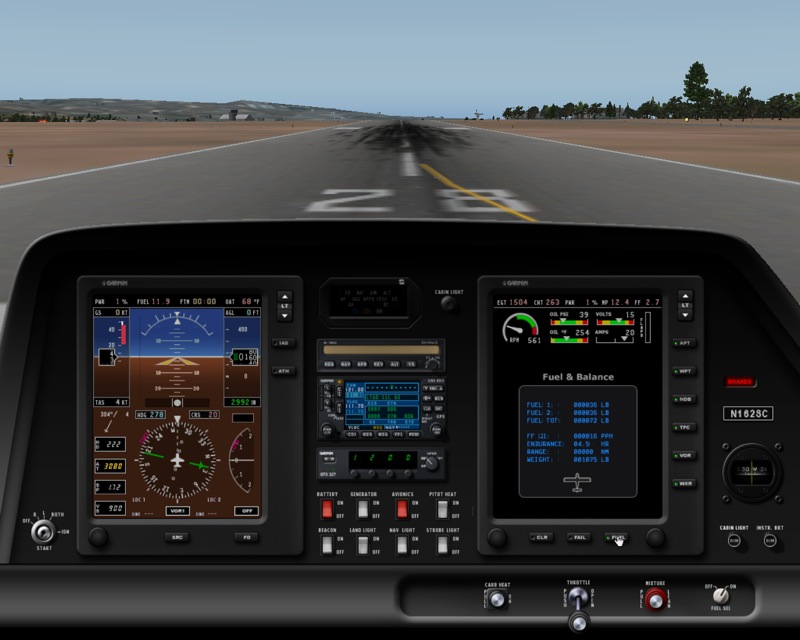

MFD Fuel & Balance Page


This will be in the next CX162 9X UPDATE that should post in the next *mumbles* hours. :)
UPDATE POSTED TODAY, 9/11/09
Here’s to the crazy ones. The rebels. The troublemakers. The ones who see things differently.
While some may see them as the crazy ones, we see genius.
Because the people who are crazy enough to think they can change the world, are the ones who do.
User avatar
AADX
Administrator

Posts: 3833
Location: Wichita, Kansas

Re: GARMIN 300 in CX162A SkyCatcher

Postby AADX »

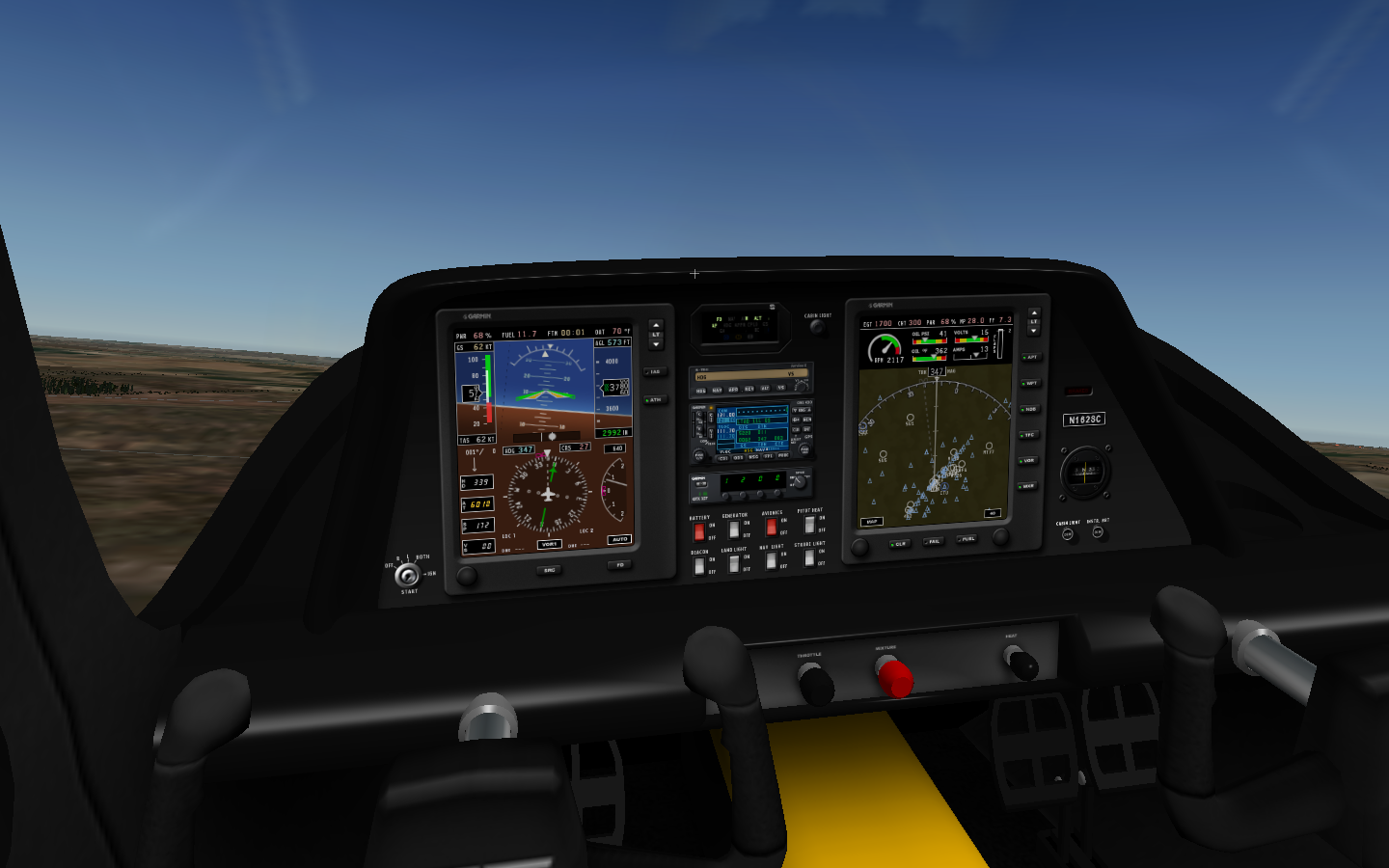

This new panel provided enough motivation and inspiration to revisit the 3d cockpit. Updated some material colors, added cockpit glass and set the 2d panel to the 3d panel area so that all items are shown, and looks pleasantly seamless and integrated. These shots taken on my MBP with pixel shaders on and widescreen.


Here’s to the crazy ones. The rebels. The troublemakers. The ones who see things differently.
While some may see them as the crazy ones, we see genius.
Because the people who are crazy enough to think they can change the world, are the ones who do.
User avatar
AADX
Administrator

Posts: 3833
Location: Wichita, Kansas

Re: GARMIN 300 in CX162A SkyCatcher

Postby GlowWorm »

WOW!

Teasing the borders and going beyond. Some engineering here!
Aloha!,
. GlowWorm

Hangar: Starship Mirage Velocity XL Cassutt AADx250TP _x1500 _x450TJ _LearFan CMM510 Colani Fanliner C-T182T Cirrus SE-22T Lear 25 EC135 EC145 A109 B430

http://x-plane.push-point.net
http://twitter.com/XPglowworm
User avatar
GlowWorm
Moderator

Posts: 255
Location: PHNY KHAF EHLE VHSK YNTM
